Heavy-duty lifting, rigging, and welding applications, Lifting and rigging
Voltage
N/A (mechanical load ring, no voltage required)
Type
Weld-on load ring, Swivel LOAD RING (VLG)
Load Capacity
Up to 10 t (varies per version)
Inclination
Can be loaded in multi-directional angle, 360 rotation
Material
Alloy steel, quenched and tempered, pink powder-coated (CORROSION PROTECTED), Alloy steel, quenched and tempered
Drive Type
Manual (no drive, mechanical lifting point), Manual or Powered
Max. Lifting Weight
Up to 10 t
Mechanism Type
Swivel Load Ring, mechanical attachment, Swivel load ring
Working Temperature
-40C to +100C (temporary up to +200C)
Safety Device
Forged safety latch, high safety factor (min. 4:1), Forged safety latch and design factor 4:1
Capacity
1.6 t to 10 t (varies by model)
Design Factor
4:1 (Safety)
Finish
Pink powder coated corrosion protection
Installation
Supplied with position-controlled, captive bolt
Product Code
VLG
Application
Suitable for multi-directional loading
Bolt Length
Varies by load ring size (M12 to M48 standard)
Swivel Rotation
360 rotation under load
Marking
Working load limit and CE mark
RUD VLG LOAD RING Trade Information
Minimum Order Quantity
25 Number
FOB Port
VADODARA
Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque
Delivery Time
Days
Sample Policy
Contact us for information regarding our sample policy
Main Domestic Market
All India

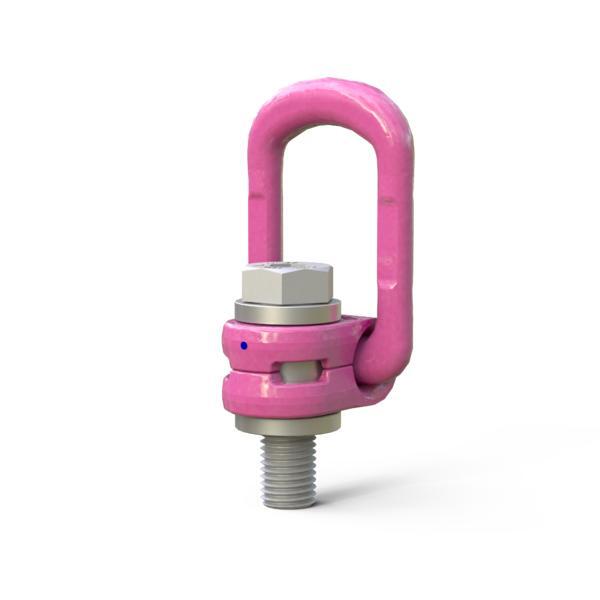

About RUD VLG LOAD RING
Captive but exchangeable RUD-Bolt with special corrosion protection Corrud-DT.
The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state.
